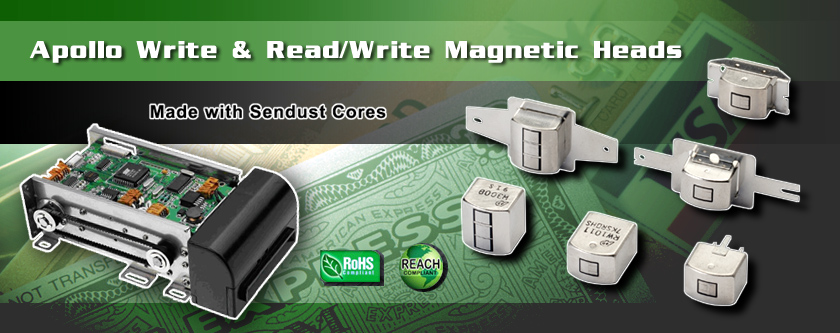

Read Write Head
Application: l Card Issuing MachinesOutside Dimension: (Unit: mm)
Features:
Items Test conditions Spec D.C Resistance D.C 100uA R 430Ω±20% W 1.4Ω±20% Inductance 1KHz 100uA 220mH±25% 0.7mH±25% Read Output 7.5IPS,210Bpi load 10KΩ//200pF 36mVp-p±25% Recording Current 1750 Oe 400 mA P-P Coercivity 300-2750 Oe Track & Gap Width W 3mm R 1.5mm / 25 μm Case Resin Material Epoxy Resin Min. Passes Hard Permalloy Cores 500K Min. Passes Sendust Cores 1000K
カスタマイズ： DCR、インダクタンス、リード出力、スプリング/マウント、ケーブル、FPCには、お客様の要件や仕様に応じて組み立てができます。 ダウンロードファイル:
Application: l Card Issuing Machines Outside Dimension: (Unit: mm)
Features:
Items Test conditions Spec D.C Resistance D.C 100uA R 250Ω±20% W 1.3Ω±20% Inductance 1KHz 100uA R 1Tr 190mH±25% W 1Tr 0.95mH±25% R 2Tr 200mH±25% W 2Tr 1mH±25% R 3Tr 200mH±25% W 3Tr 0.75mH±25% Read Output 7.5IPS,210Bpi load 10KΩ//200pF 23mVp-p±25% Recording Current 1750 Oe 600 mA P-P Coercivity 300-2750 Oe Track & Gap Width W 3mm R 1mm / 25 μm Case Resin Material Epoxy Resin Min. Passes Hard Permalloy Cores 500K Min. Passes Sendust Cores 1000K
Download File:
