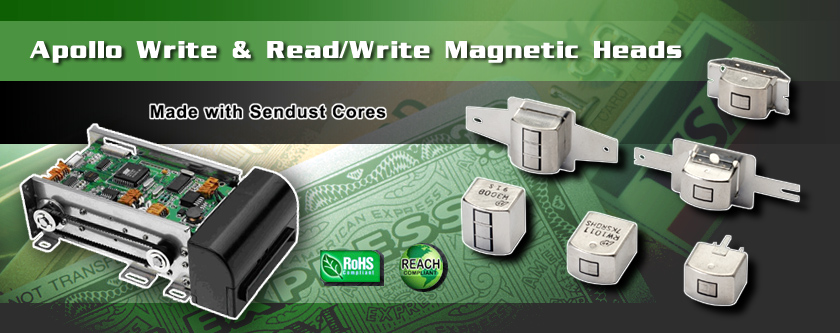

Write Head
Application : l ISO Standard Single Track EncoderOutside Dimension: (Unit: mm)
Features:
Items Test conditions Spec D.C Resistance D.C 100uA 9Ω±20% Inductance 1KHz 100uA 5.35mH±25% Recording Current 300 Oe 50 mA P-P Coercivity 300-2750 Oe Track & Gap Width 9.93mm / 25 μm Case Resin Material Epoxy Resin Min. Passes Sendust Cores 1000K
Customization Availabilities: DCR, Inductance, Read output, Head spring, Wire, FPC…etc. could be provided with the assembly as per customer requirement or specification.Download File: AP-W1XXX series.pdf
Application : l ISO Standard Triple Track EncoderOutside Dimension: (Unit: mm)
Features:
Items Test conditions Spec D.C Resistance D.C 100uA 5.5 Ω±20% Inductance 1KHz 100uA 1Tr 1.3mH±25% 2Tr 1.35mH±25% 3Tr 1.25mH±25% Recording Current 300 Oe 26 mA P-P Coercivity 300-2750 Oe Track & Gap Width 3mm / 30 μm Case Resin Material Epoxy Resin Min. Passes Sendust Cores 1000K
Customization Availabilities: DCR, Inductance, Read output, Head spring, Wire, FPC…etc. could be provided with the assembly as per customer requirement or specification.Download File: AP-W3XXX series.pdf
Click here to contact us or request information regarding our products.
