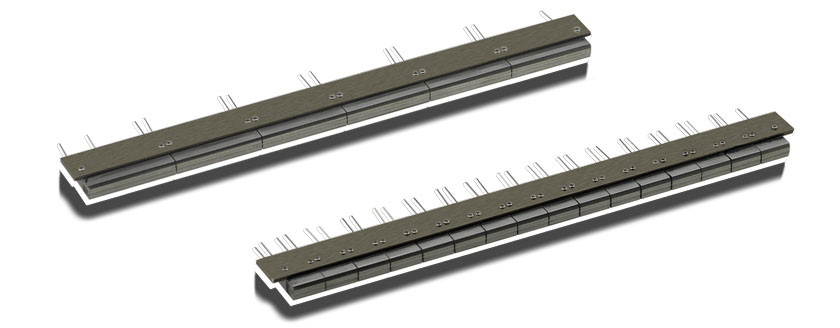

Application: 1) Full Track Reader. 2) Bank Note Reader.
Outside Dimension: (Unit: mm)
Features:
Items
Test Conditions
Spec
Coil DCR
D.C 100uA
362Ω±15%
Coil Inductance
1KHz
55mH±20%
Insulation Resistance Coil To Case
D.C 500V
50MΩ Min
Earthing Resistance Core To Case
D.C 100uA
1Ω Max
Track
29.8mm×6
Core Material
Permalloy
Case Material
Permalloy
Customization Availabilities: DCR, Inductance, Wire, FPC…etc. could be provided with the assembly as per customer requirement or specification. Download File: AP-CH098.pdf
Application: 1) Full Track Reader. 2) Bank Note Reader.
Outside Dimension: (Unit: mm)
Features:
Items
Test Conditions
Spec
Coil DCR
D.C 100uA
88Ω±15%
Coil Inductance
1KHz
5mH±20%
Insulation Resistance Coil To Case
D.C 500V
50MΩ Min
Earthing Resistance Core To Case
D.C 100uA
1Ω Max
Track
10.8mm×16
Core Material
Permalloy
Case Material
Permalloy
Customization Availabilities: DCR, Inductance, Wire, FPC…etc. could be provided with the assembly as per customer requirement or specification. Download File: AP-CH088.pdf
