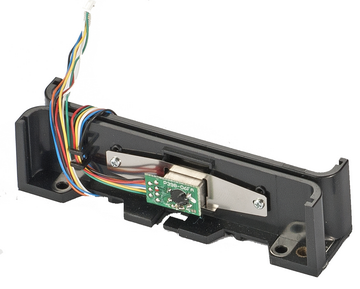

Digital Head Assembly

  • AP-DHA1XXX
  • AP-DHA2XXX
  • AP-DHA3XXX

    • Application:
    --Manual-Swipe Type Reader
    --Bi-Directional Reading Capability
    --Bank and Card System Terminals

    Outside Dimension:

    Features:

    Rail MaterialPlastic
    Card HandlingBi-Direction read
    Magnetic Card StandardISO7811 Track2
    Card RecordingF2F Format
    Card Swiping Speed10-100 cm/sec
    OutputTTL Compatible
    Power SupplyDC. 3V or 5V
    Life Time of Head500K Min
    Operation Temperature-10~50℃
    Operation Humidity10%~90% relative to 40℃, no condensing



    Customized availabilities: Head Spec, Spring, Card Rail, Wire, FPC…etc. could be provided with the assembly as per customer requirement or specification.

    File download: Digital Head Assembly-AP-DHA1XXX series.pdf

    Click here to contact us or request information regarding our products.
